Console Internal/External Wiring Cables
世界中のスタジオで愛用されている、ミキシングコンソールやラック盤等の配線に最適な高音質で柔らかなケーブルです。
The copper conductors of all these console cables are made of famous NEGLEX OFC, hence we can recommend any of these with confidence for the highest quality wiring of mixing consoles, rack panels, and studio equipment.
モガミ電線のコンソール用配線材は、総て有名なネグレックスOFC導体が使われていますので、ミキシング・コンソール、ラック盤、その他のスタジオ機器の高音質配線用に、自信を持っておすすめします。

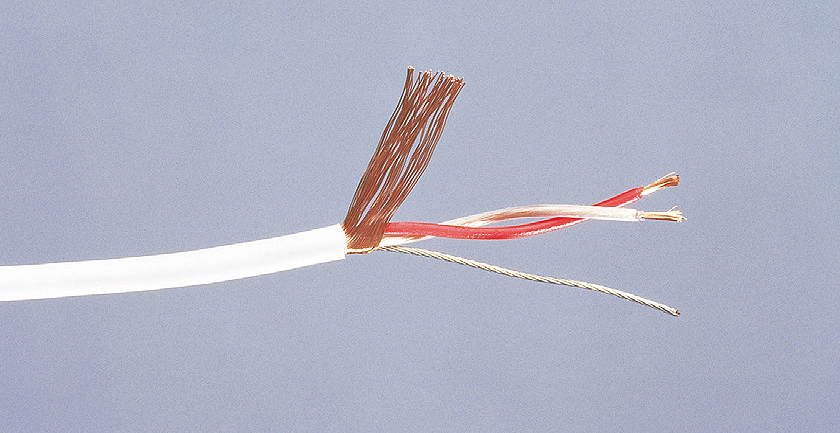

Part No.2944

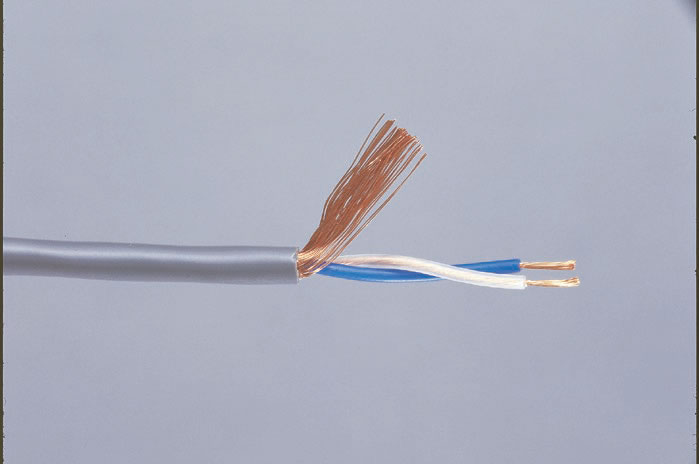

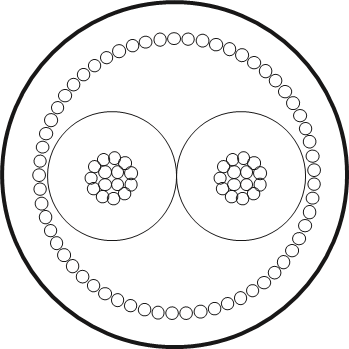

Part No.2806
Part No.2799

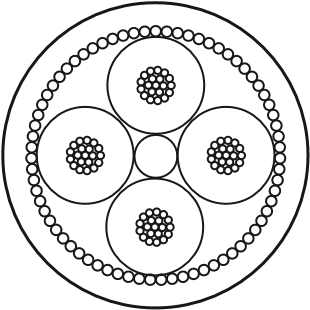

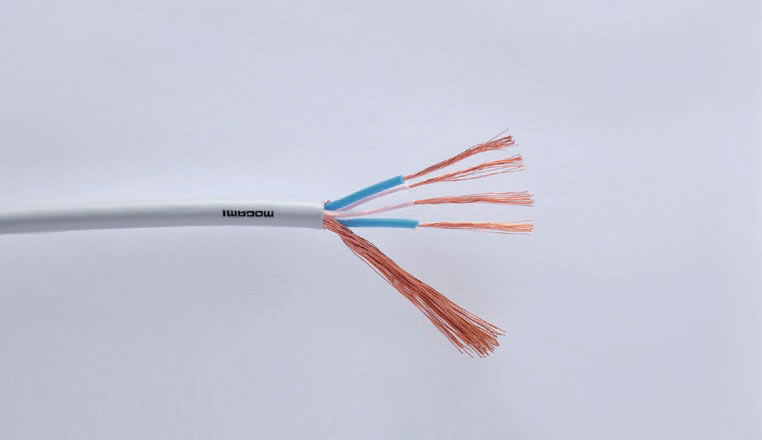

Part No.2820
Configuration 構造 | |||||
Part No. 品番 | 2944 | 2806 | 2799 | 2820 | |
No. of Conductor 芯数 | 2 | 2 | 4 | 4 | |
Conductor 導体 |
Details 構造 | 30/0.08 OFC | 30/0.12 OFC | 30/0.08 OFC | 20/0.12 OFC |
Size サイズ | 0.15mm2(#26AWG) | 0.34mm2(#22AWG) | 0.15mm2(#26AWG) | 0.226mm2(#24AWG) | |
Insulation 絶縁体 |
Ov. Dia. (mm) 外径 | 1.0φ(0.039") | 1.9φ(0.075") | 1.0φ(0.039") | 1.6φ(0.063") |
Material 材質 | XLPE( Cross-Linked Polyethylene ) 架橋 ポリエチレン | ||||
Core Colors 色 | Red/Clear | Blue/Clear | Black/Red/Blue/Clear | Blue/Clear(Quad) | |
Drain Wire ドレイン ワイヤ |
Details 構造 | 7/0.18A | - | - | - |
Size サイズ | 0.18mm2(#25AWG) | - | - | - | |
Served Shield 横巻シ-ルド | Approx. 60/0.10A | Approx. 58/0.18A | Approx. 60/0.12A | Approx. 60/0.18A | |
Jacket ジャケット |
Ov. Dia. (mm) 外径 | 2.5φ(0.098") | 5.2φ(0.205") | 3.2φ(0.126") | 5.0φ(0.197") |
Material 材質 | PVC 塩ビ | ||||
Core Colors 色 | Black/Brown/Red/ Orange/Yellow/Green/ Blue/Purple/Gray/White | Gray | Gray | Gray | |
Roll Sizes 標準条長 | 50 m (164Ft) 100m (328Ft) 200m(656Ft) | 200 m (656Ft) (standard) | 50 m (164Ft) 100m (328Ft) 200m(656Ft) | 200 m (656Ft) (standard) | |
Weight per 200m Roll 重量 | 2.5 kg | 8 kg | 3.8kg | 8 kg |
DC Resistance at 20℃ | Inner Cond. 中心導体 | 0.13Ω/m(0.040Ω/Ft) | 0.058Ω/m(0.018Ω/Ft) | 0.13Ω/m(0.040Ω/Ft) | 0.083Ω/m(0.025Ω/Ft) | ||
Shield シ-ルド | 0.029Ω/m(0.009Ω/Ft) | 0.013Ω/m(0.004Ω/Ft) | 0.028Ω/m(0.009Ω/Ft) | 0.012Ω/m(0.0037Ω/Ft) | |||

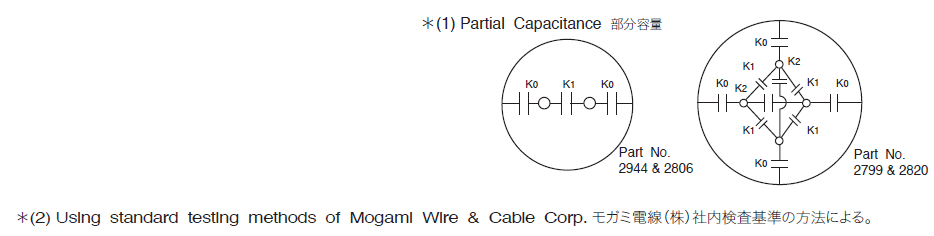

Capacitance at 1kHz, 20℃ ( Partial C. Value ) See below figure*(1)静電容量(部分容量) | K0 | 130pF/m(40 pF/Ft) | 87pF/m(27 pF/Ft) | 69pF/m(21 pF/Ft) | 65pF/m(20 pF/Ft) | ||
K1 | 12pF/m(3.7 pF/Ft) | 11pF/m(3.4 pF/Ft) | 15pF/m(4.6 pF/Ft) | 13pF/m(4 pF/Ft) | |||
K2 | - | - | 2pF/m(0.6 pF/Ft) | 4pF/m(1.2 pF/Ft) | |||
下図参照*(1) | Quad-Connection カッド結線 | Cond-Cond. | 131pF/m(40 pF/Ft) | 97pF/m(29.6 pF/Ft) | |||
Cond-Shield. | 192pF/m(59 pF/Ft) | 110pF/m(33.6 pF/Ft) | |||||
Inductance between conductors at 1kHz, 20℃ インダクタンス | 0.6μH/m (0.18μH/Ft) | 0.8μH/m (0.24μH/Ft) | 0.5μH/m (0.15μH/Ft) | 0.4μH/m (0.12μH/Ft) | |||
Electrostatic Noise *(2) ハムノイズ | 20 mV Max. | 5 mV Max. | 1.5 mV Max. | 50 mV Max. | |||
Electromagnetic Noise *(2) 電磁ノイズ | 0.1 mV Max. | 0.2 mV Max. | 0.02 mV Max. | 0.15 mV Max. |
Voltage Breakdown | 耐電圧 | Must withstand at DC 500V/15 sec. |
Insulation Resistance | 絶縁抵抗 | 105MΩ・m Minimum at DC 125 V, 20℃ |
