Digital Interface Cables
売れ筋のラインアップとして、プロ用途のMIDI機器接続用ケーブル、110Ω AES/EBUデジタルオーディオケーブル、ETHERNETケーブル、LANケーブル等がございます。AES/EBUケーブルではマルチタイプもラインアップされており、DMX用にも最適な構造になっております。ETHERNETケーブルやLANケーブルは柔らかいため平らに引き回すことが容易で、敷設や撤収が繰り返されるイベント用途に最適とご評価いただいておる製品群です。またMIDIケーブル及びAES/EBUケーブルの品番3228についてはコネクターアッセンブリー品の販売もしております。

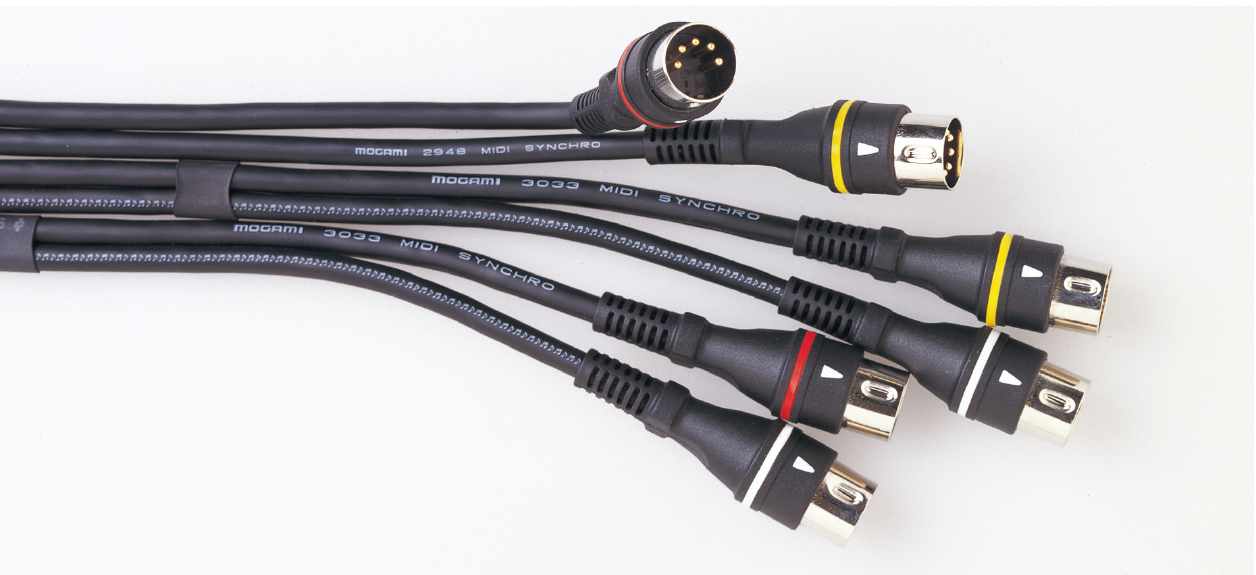

MOGAMI MIDI SYNCHRO CABLE ASSEMBLIES are specially designed for use with the Musical Instrument Digital Interface (MIDI) communication system.
Applications include the latest MIDI patchbays, and interconnection between MIDI equipment and MIDI served musical instruments. These outstanding professional cables offer the following features:
MIDI機器接続用のMIDI-SYNCHROケーブルアセンブリで、MIDIパッチ・コードとしてプロ用に重点がおかれた設計には次の特徴があります。

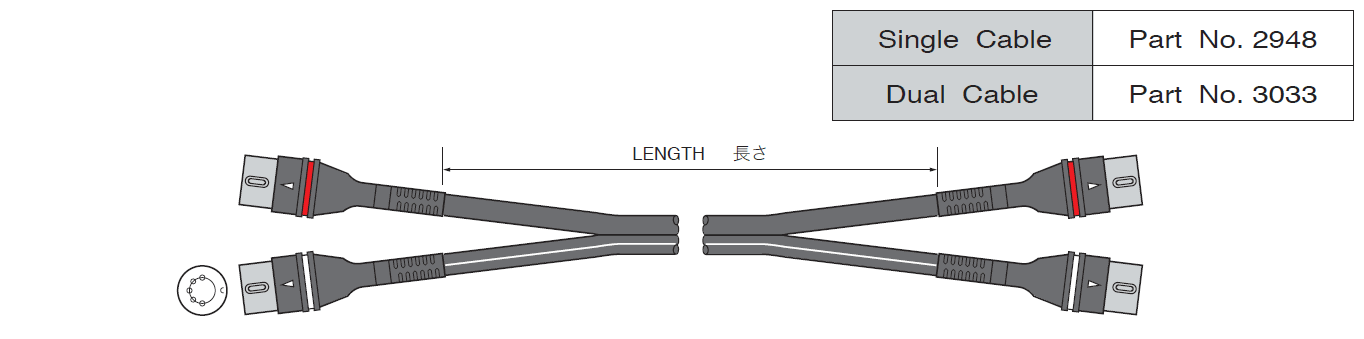

Part No. 品番 | Single | MIDI-015 | MIDI-03 | MIDI-05 | MIDI-10 | MIDI-15 | MIDI-20 | MIDI-30 |
Dual | MIDI-015D | MIDI-03D | MIDI-05D | MIDI-10D | MIDI-15D | MIDI-20D | MIDI-30D | |
Length 長さ | 18"(1.5' ) 45cm | 3Ft 90cm | 5Ft 1.5m | 10Ft 3m | 15Ft 4.5m | 20Ft 6.1m | 30Ft 9.1m |
All of MOGAMI 110Ω AES/EBU digital audio cables are designed with flexibility and handy configuration.
Many variations are available from regular application type up to long distance application types, from single core up to 12-core types, internal wiring type, and interconnect application types. Strict tolerance control of impedance within ±5% up to ±10% at the maximum. All these are applicable for DMX interconnect.
モガミの110Ω AES/EBU デジタルオーディオケーブルは総て使い勝手の良い柔軟な構造に設計されております。通常使用長用のものから長距離用のものまで、単芯のものから12芯のマルチケーブルまで、また、内部配線用から機器間接続用のものまで各種用意されております。これらのケーブルは総てDMX信号に適用出来ます。
Part No. 品番 | 3159 | 3228 | 3080 | 3135 | 3173 | 3160~3163 |
Suggested Maximum applicable length 推奨最大連続使用長 |
150m 492Ft | 300m 1,000Ft | 150m 492Ft |
Part No.3159 is for internal wiring material, Part No.3160~3163 are multicore cables and other cables are for regular interconnect application. Part No.3228 is compact size, flexible and durable configuration to meet tiny telephone plug cable clamp, therefore it is recommended for use with rough applications. And, Part No.3173 is specially designed for long distance application assured over 300m.
However, above suggested maximum applicable length is based on use with any device that meets AES standard requirement without equalizer. In the case of use with an equalizer, the maximum applicable length can be expanded up to 1.5 times longer than assured length above. Since AES/EBU digital audio cable is low capacitance characteristics, it can result in high quality analog audio transmission in general especially for high frequency range.
品番3159は内部配線用、3160~3163はマルチケーブル、その他は通常の機器間接続用です。品番3228はバンタムプラグに接続出来る外径で乱暴な取り扱いに耐えるような構造に設計された柔軟なケーブルです。また、品番3173は特別に長距離引き伸ばし用に開発されたものです。
尚、上記推奨最大連続使用長はAES規格を満足する機器をイコライザ無しで使用する場合です。イコライザを使えば更に1.5倍程度まで使用可能になります。デジタルオーディオケーブルは必然的に低容量ですので、アナログオーディオ信号の伝送に用いても良い結果が得られます。特に高域の落ち方が少なくなります。
Part No. 品番 | PJD-12 | PJD-18 | PJD-24 | PJD-36 | PJD-48 | PJD-60 | PJD-72 |
Length 長さ | 12" 30cm | 18" 45cm | 24" 60cm | 36" 90cm | 48" 120cm | 60" 150cm | 72" 180cm |
Cable : Part No .3228 standard Color : Black only
Mogami Ethernet Cable is specifically designed for demanding mobile applications. It is flexible enough to lay flat on a floor, yet rugged enough for reliable performance─even with the frequent set ups needed in live sound and commercial venues. Fully meets TIA/EIA-568B Category 5e performance characteristics.
PA/屋外使用等、敷設・撤収を繰り返す可動的な用途向けに特別に設計したイーサネットケーブルです。柔軟なため床に平らに引き回せ、通常のフィールドワークに耐える十分な機械的強度があり ます。特性値はTIA/EIA-568B Category 5e を完全に満足します。
Nominal Characteristic Impedance [公称特性インピーダンス] | 100Ω |
Attenuation [減衰量](Worst Pair) | 24dB |
Return Loss [反射減衰量](Worst Pair) | 22dB |
Propagation Delay [伝搬遅延](Worst Pair) | 480ns |
Delay Skew [遅延時間差](Worst Pair-to-Pair) | 5ns |
NEXT [近端漏話減衰量](Worst Pair-to-Pair) | 44dB |
PS NEXT [電力和近端漏話減衰量](Worst Case) | 44dB |
ELFEXT [等レベル遠端漏話減衰量](Worst Pair-to-Pair) | 33dB |
PS ELFEXT [電力和等レベル遠端漏話減衰量](Worst Case) | 32dB |
Tensile Strength connector to cable コネクタ接続部引張強度 | Minimum 300 N |
Tensile Strength of cable itself ケーブル単独の引張強度 | Minimum 700 N |
Overall Diameter ケーブル外径 | 9.2mm (0.362") |
Overall Jacket Material ジャケット材質 | PVC 塩ビ |
Color 色 | Black 黒 |
Weight per 100 m Roll 重量 | 8.3 Kg |
Standard 適用規格 | UL758 Style 2012460℃ 30V VW-1 |
COLOR COMBINATION OF A PAIR ツイストペアコア色 | PIN NUMBER OF RJ45 RJ45 ピン接続番号 |
White/Green 白/緑 | 1, 2 |
Blue/Grey 青/灰 | 3, 6 |
Yellow/Orange 黄/橙 | 4, 5 |
Natural/Brown ナチュラル/茶 | 7, 8 |
This cable is available in complete assemblies, wired for straight or cross connection format. Please specify which format when ordering. Bulk cable is also available in lengths up to 300m (1,000 Ft). Factory assemblies carry a one year warranty against failure. Service outside of warranty is available from the factory at nominal cost.
RJ45コネクタとの接続に工夫が要りますので通常は両端にコネクタを付けた形で販売致します。受注時の長さは最大300mまで自由に指定出来ます。不具合発生時の無償修理保証期間は1年ですが、保証期間後も有償でコネクタの取り付けを致します。コネクタ付け替えに際してはその都度先端切り落とし部分の長さが短くなります。発注時にはストレート結線かクロス結線かの確認をお願いします。
3367 LAN cable is designed to be limp in order to be easy to handle and lay out flat. This solves a significant problem with standard data cables, which lay about as flat as barbed wire!
Performance meets the TIA/EIA-568B Cat-5e standard up to approximately 295 feet (90 meters).
Please note that precise usable length depends greatly on the electrical characteristics of the connected devices, so if there is any doubt it is best to verify performance with the specific devices before installation.
Complies with UL VW-1 flame propagation standard. Three standard colors, Blue, Grey, and Yellow are available.
3381 features a reinforcement fiber cord in the center of the cable for enhanced tensile strength. This makes it approximately 30% stronger than 3367. The additional strength combined with the limp, no-memory handling characteristic mean 3381 is perfect for live event set up. Available in Black jacket.
施工工事時に有刺鉄線のようにならず楽に配線出来るよう、平らにまっすぐ収まるように設計された LAN CABLEです。UL VW-1 難燃規格にも適合しており、標準で3色(青・灰・黄)用意しました。また、平均的な減衰測定値から90m前後まではTIA/EIA-568B Cat-5e 規格値を満たしますので、両端に接続される機器の電気的性能によりそれ以上の長さで使用出来る場合や、逆にそれ以下の利用長に制限される場合がありますので、際どい場合には利用前に実地確認する必要があります。
3381タイプは3367同様柔軟で、イベント設営等に適するようケーブル中心に介在糸を入れて引っ張り強度を約30%上げてあります。ジャケット色は黒のみです。
Configuration 構造 | |||
Part No. 品番 | 3367 | 3381 | |
Characteristic Impedance 特性インピ-ダンス | 100Ω | ||
Conductor 導体 | Details 構成 | 7/0.203A | |
Size サイズ | 0.22mm2(#24AWG) | ||
Insulation 絶縁体 | Ov. Dia. 外径 | 0.98mm (0.039") | |
Material 材質 | PE | ||
Filler Thread 介在糸 | - | Fiber | |
Ov. Jacket ジャケット |
Ov. Dia. 外径 | 6.2mm (0.24") | |
Material 材質 | PVC | ||
Colors 色 | Blue/Grey/Yellow | Black | |
Flex Life* *耐屈曲特性 | 4,300 cycles | ||
Breaking Strength 抗張力 | 470N | 610N | |
Roll Sizes 標準条長 | 153m (500Ft) / 305m (1,000Ft) | 305m (1,000Ft) | |
Weight 重量 | 12.7Kg/305m (1,000Ft) | 13Kg/305m (1,000Ft) | |
Standard 適用規格 | UL 2552 AWM VW-1 30V 60℃ | UL 20124 AWM VW-1 30V 60℃ |
*Using standard testing methods of Mogami Wire & Cable Corp. モガミ電線(株)社内検査基準の方法による。
